Heat Pump Functions
Cooling of supply air in summer
Reduction of heating costs for supply air during other periods of the year
Convenient Transport, Quick Installation
The unit is divided into complete functional modules that are convenient for transport and easy to assemble independently
High Energy Efficiency
High-performance sorption rotary regenerator provides excellent heat and moisture recovery
Installation of multi-row condensers and evaporators on both sides of the regenerator ensures the most efficient operation of the heat pump
Easy Startup
Multifunctional automation integrated with the central unit – configured and ready to work
Optimal Matching
Factory matching of heat pump components and ventilation unit components
Manufacturer's warranty for the final product of the central unit and heat pump
Data from the central base
| Size of the control panel | Nominal efficiency | Performance range |
Height | Width | Height of channel connection |
Width of connection to channel |
| Units | m3/h | m3/h | mm | mm | mm | mm |
| MVS021c | 2100 | 1200-2100 | 991 | 967 | 345 | 860 |
| MVS030c | 3000 | 1500-3000 | 1255 | 967 | 480 | 860 |
| MVS040c | 4000 | 2000-4000 | 1255 | 1174 | 480 | 1065 |
| MVS055c | 5000 | 2500-5500 | 1525 | 1345 | 615 | 1235 |
| MVS075c | 7500 | 3750-7500 | 1765 | 1486 | 735 | 1380 |

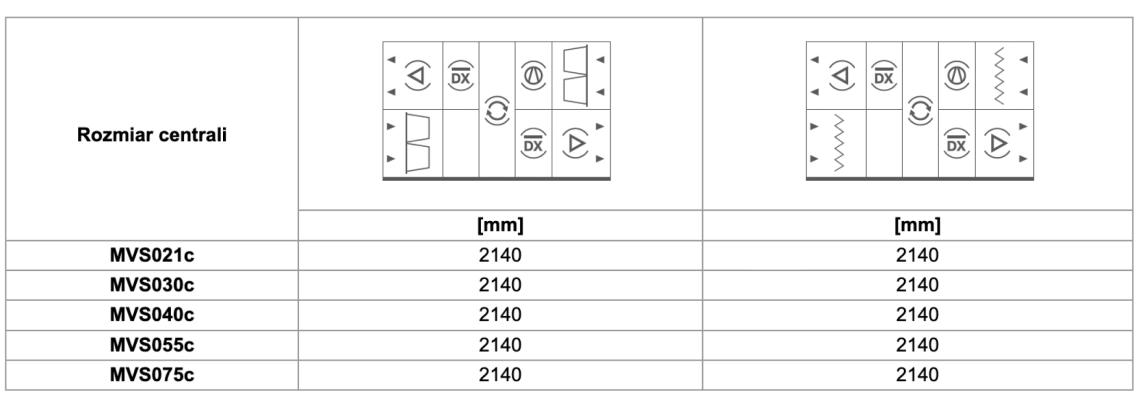

Base Unit Lengths
