Modular control panel WindMe series

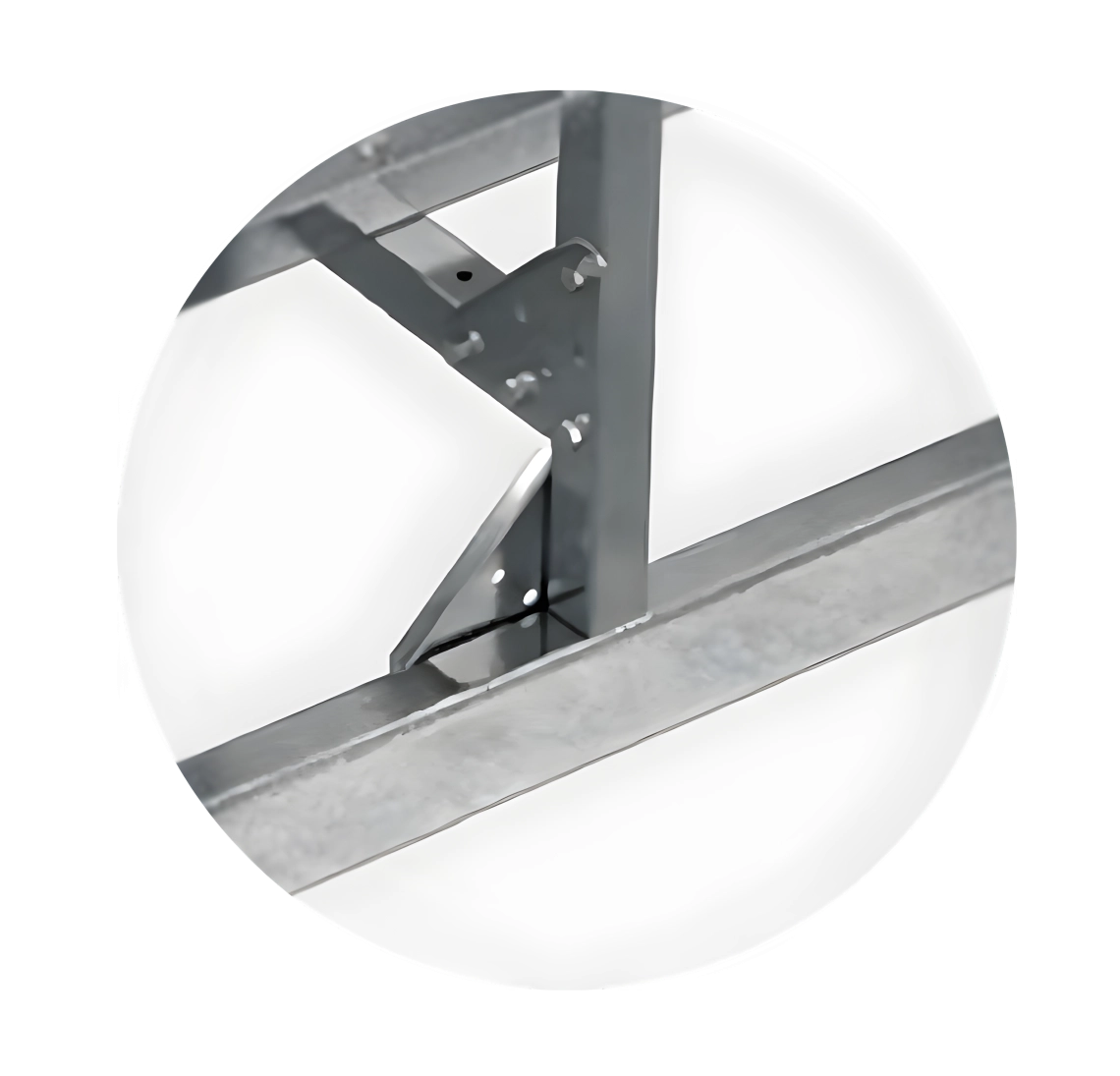

Fan section cage

• Increased longitudinal rigidity of the structure.
• Facilitates sectional assembly.

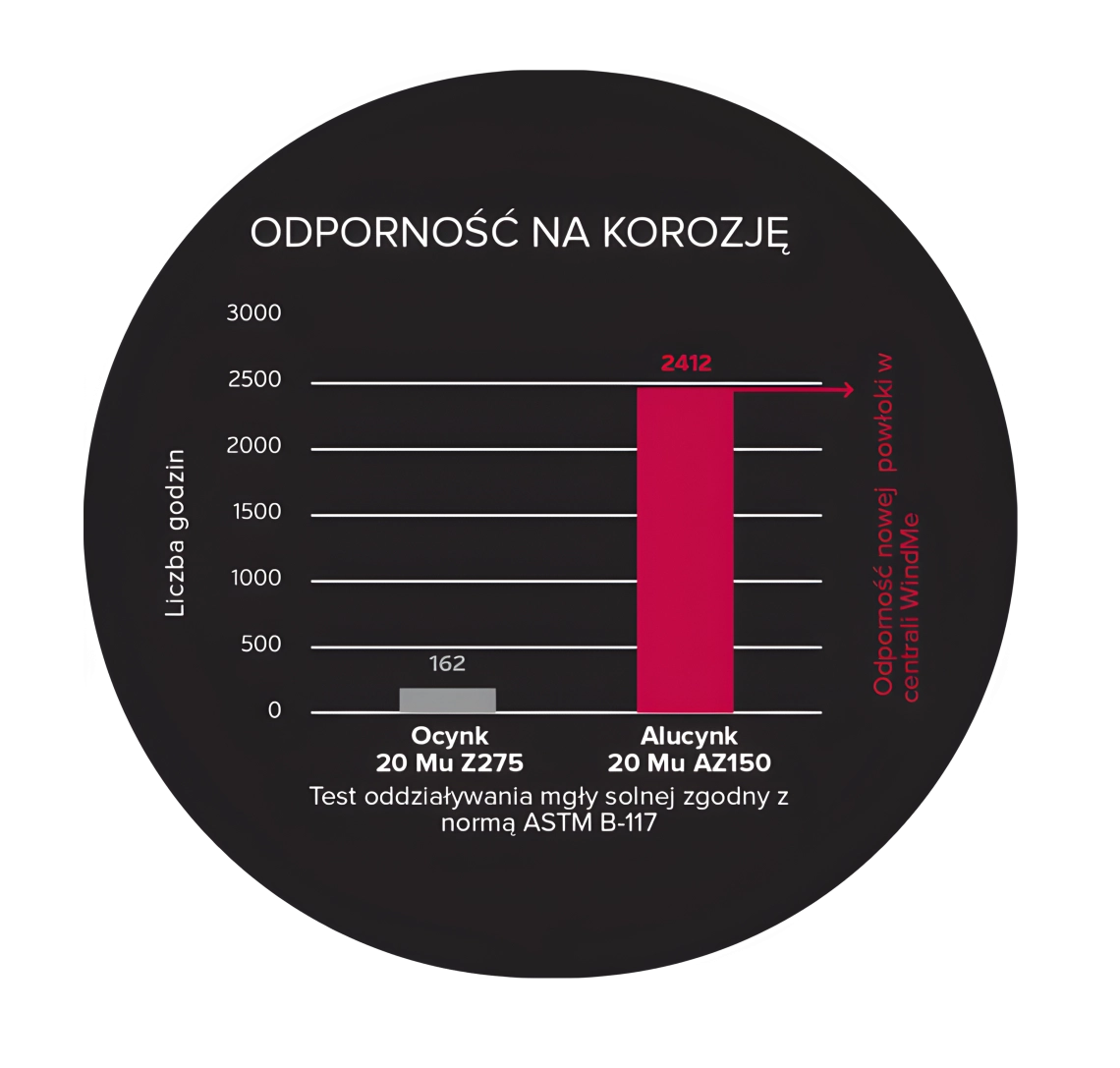

Housing cladding

• Rigid, durable housing construction.
• Low heat and UV radiation absorption.
• High resistance to weather conditions.

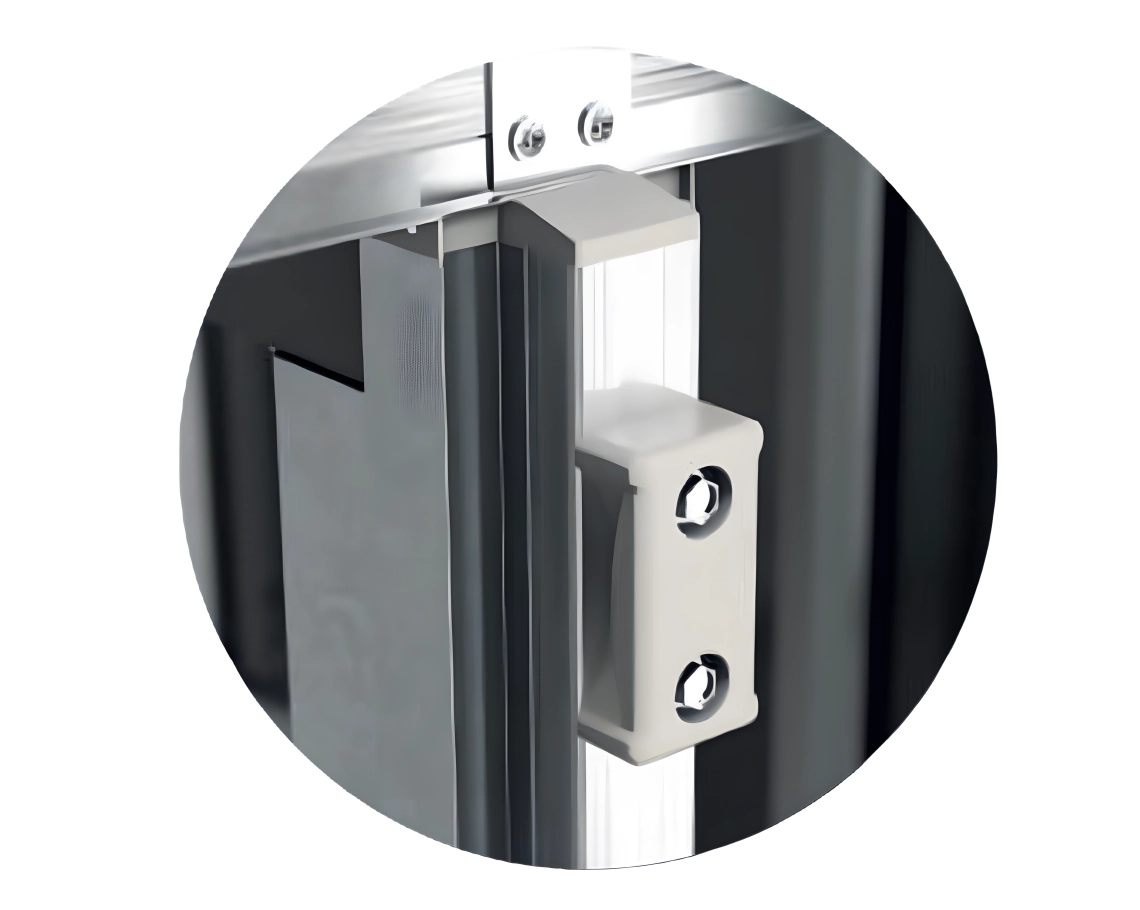

Structural posts

ALUMINUM POSTS WITH SPECIAL DESIGN FOR ALL TYPES OF CENTERS

• Thermal bridge break as standard.
• High resistance to weather conditions and UV rays.

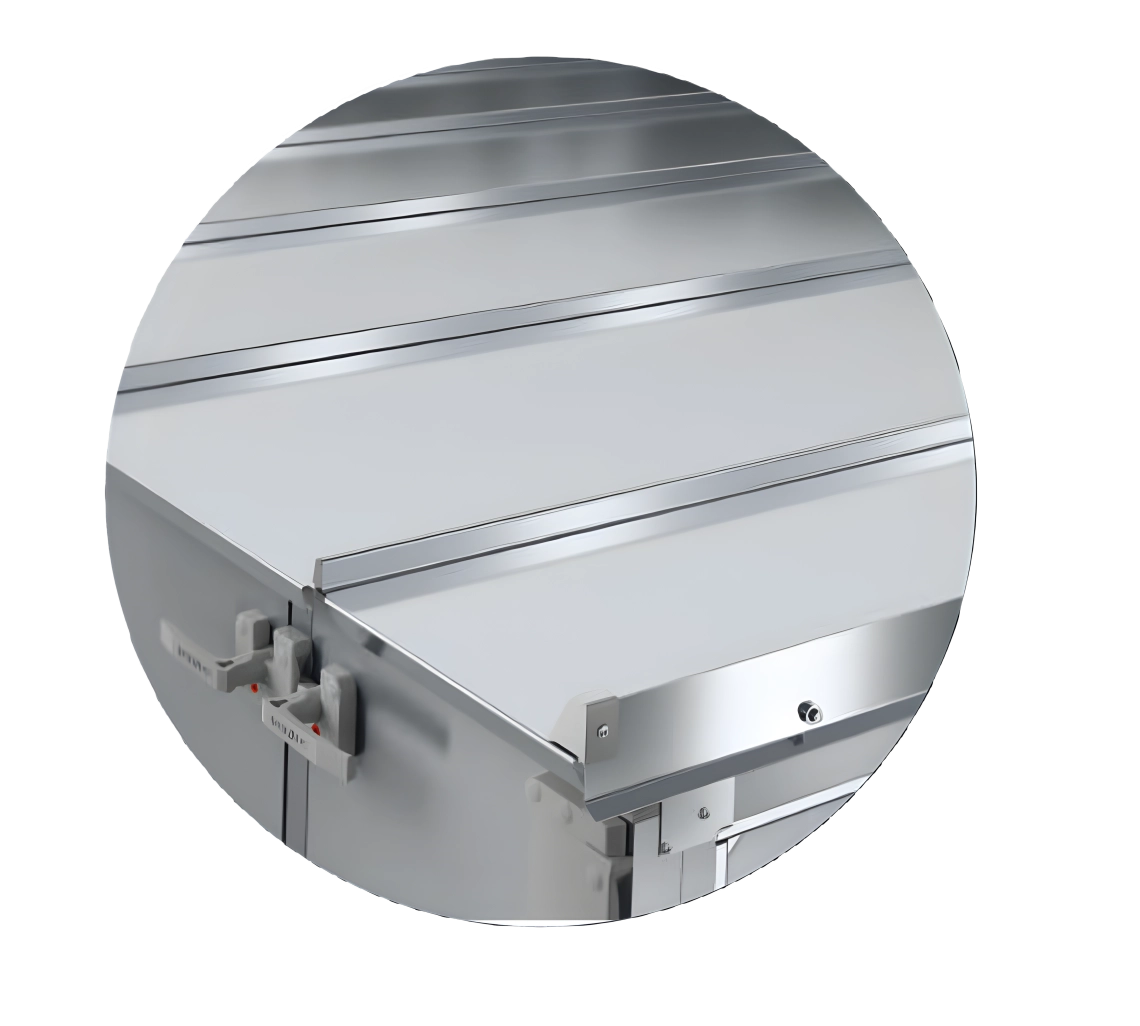

Roof

• The roof is made of 0.5 mm thick sheet metal, coated on both sides with 185 um thick zinc (DX51D AZ185).

• The roof is assembled from modular elements equipped with snap-in grooves ensuring complete tightness of the joints. The modular design of the roof makes its assembly ergonomic and safe.

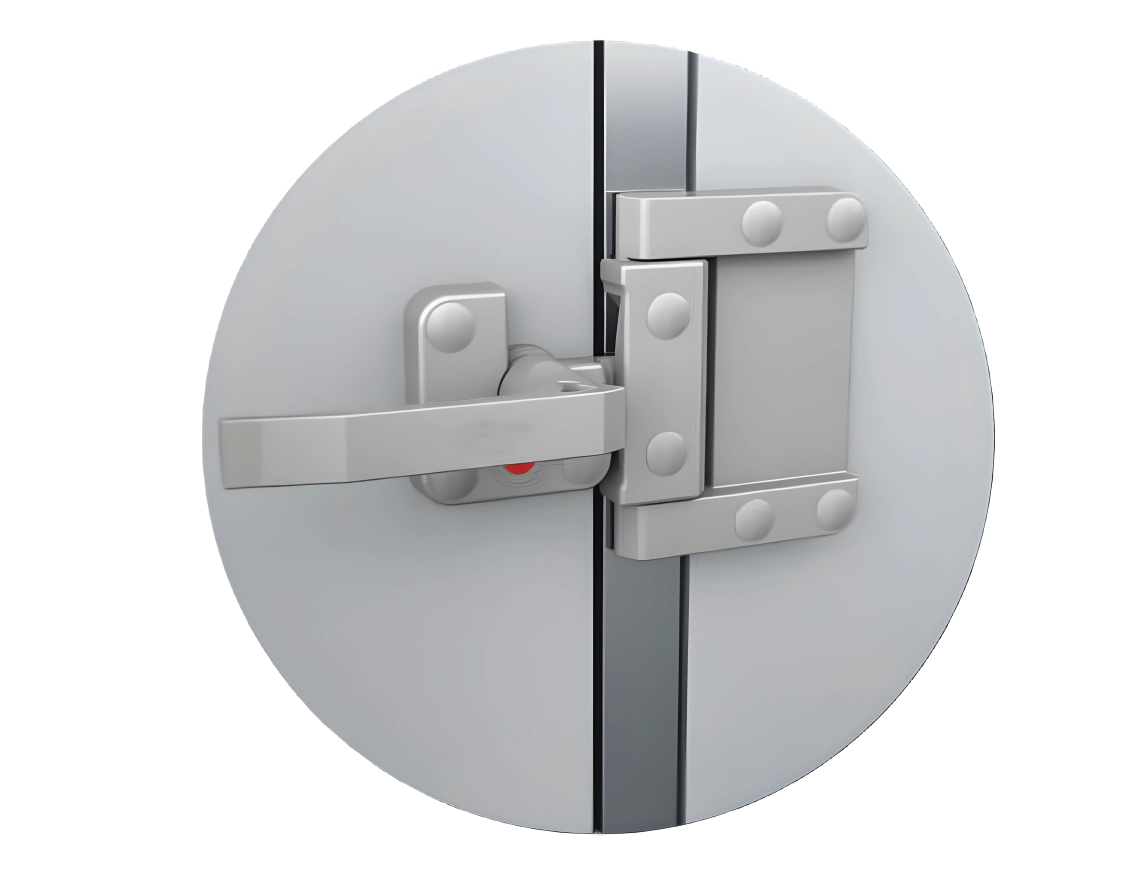

Ergonomic locking system

• Aesthetic, comfortable, and ergonomic handles ensure a tight seal of the inspection panel.
